If you're heading away from powered campsites, understanding your caravan's 12V electrical system is one of the most useful things you can learn.

Your 12V system runs many of the things you rely on when you're camping away from mains power, including lights, water pumps, fridges, USB chargers and other small appliances.

The good news is that you don't need to be an electrical engineer to understand the basics.

What does 12V actually mean?

A caravan's 12V system is powered by batteries. Unlike the 240V power you use at home, 12V systems are designed to operate at a much lower voltage.

Your battery stores the energy, while other equipment helps charge it.

A basic off-grid setup might include:

A 12V battery

Solar panels

A solar charge controller

A battery monitor

Fuses and circuit protection

12V appliances and lighting

A way of charging the battery while driving

The exact setup can become much more sophisticated, but these are the basic building blocks.

How does solar fit into the system?

Solar panels produce electricity during daylight hours. The solar charge controller regulates that electricity before it reaches your battery.

This means your solar system can replace some or all of the energy you use during the day, depending on the weather, panel size, battery capacity and how much power you're using.

Solar doesn't magically create unlimited electricity, though.

If you use more energy than your panels can replace, your battery will eventually run down.

How much battery power do you need?

This depends entirely on what you want to run.

Someone who mainly uses LED lights, a water pump and charges a phone will have very different requirements from someone running a large fridge, television, computer and other equipment.

A useful starting point is to work out what you use each day and how much electricity those appliances consume.

Once you know your daily power requirements, you can start working out the battery and solar capacity you'll need.

AGM or lithium?

Two common battery types you'll come across are AGM and lithium.

AGM batteries have been widely used in caravans and other 12V applications for years. They're relatively simple and can be a good option for some setups.

Lithium batteries are lighter and generally provide more usable capacity for their size and weight. They have become increasingly popular in caravans and off-grid systems.

Neither option is automatically the right answer for everyone. Your budget, existing equipment, charging system and power requirements all matter.

What about charging while driving?

Solar isn't the only way to recharge your caravan battery.

A DC-DC charger can use power from your vehicle's electrical system to charge your auxiliary battery while you're travelling.

This can be particularly useful when you're moving between campsites and don't have enough sunlight to completely replace the energy you've used.

Start simple

If you're new to 12V systems, don't feel like you need to build the ultimate off-grid setup immediately.

Start by understanding:

What power do I use?

How much battery capacity do I have?

How am I charging it?

How much energy am I using each day?

Once you understand those four things, upgrading your system becomes much easier.

At Oz Off Grid, we'll be looking at practical 12V, solar, caravan and off-grid setups without turning everything into an electrical engineering exam.

Solar power is one of the most useful additions to a caravan when you want to spend more time away from powered campsites.

But one of the first questions people ask is:

How much solar do I actually need?

Unfortunately, there isn't one answer that suits every caravan. The right amount depends on your battery capacity, what equipment you're running, how much energy you use and where you're camping.

Start with what you actually use

Before buying more solar panels, work out what you're using power for.

A basic setup might run:

LED lights

Water pumps

Phone and tablet chargers

USB devices

A 12V fridge

Fans

Television or other small appliances

Someone who spends most of the day outside and only uses a few lights and a fridge will have very different power requirements from someone running several appliances throughout the evening.

Solar panels don't directly replace your battery

It's useful to think of your battery as your energy storage and your solar panels as your energy generator.

During daylight, your panels produce electricity which can power equipment and recharge your battery.

At night, your solar panels aren't producing useful power, so you're relying on the energy stored in the battery.

That's why having plenty of solar doesn't necessarily solve every power problem. Your battery needs enough capacity to get you through periods when the panels aren't producing much energy.

More solar isn't always better

It can be tempting to simply keep adding panels.

But your solar setup also needs to be matched to the rest of your system.

Your solar charge controller needs to be suitable for the amount and type of solar you're installing, and your battery needs to be capable of accepting the available charging current.

Roof space can also become a limitation on caravans.

Sometimes the better solution isn't simply adding more panels. It might be reducing unnecessary power consumption, improving battery capacity or adding another method of charging.

What happens on cloudy days?

Solar output changes considerably depending on conditions.

A sunny day can produce plenty of energy, while cloud, shade, dirt on the panels and the position of the sun can reduce the amount of electricity your system produces.

This is particularly important if you're travelling in winter or camping somewhere with limited sunlight.

A good off-grid setup needs to allow for the days when everything doesn't go according to plan.

A simple way to think about your setup

Rather than asking:

"How many solar panels should I buy?"

Start with:

"How much electricity do I use each day?"

Then consider:

How much battery capacity do I have?

How much solar can I realistically fit?

How much sunlight can I expect?

Do I have another way to recharge the battery?

Answering those questions gives you a much better starting point than choosing a solar system based purely on what someone else has installed.

What about charging while driving?

A DC-DC charger can provide another way to recharge an auxiliary caravan battery while travelling.

This can be particularly useful when you're moving between locations or when poor weather means your solar system hasn't been able to replace everything you've used.

Solar and vehicle charging can work together rather than having to rely entirely on one method.

The goal isn't maximum power

A good off-grid system isn't necessarily the biggest one.

It's the system that gives you enough usable energy for the way you actually camp.

If you understand your daily power consumption, battery capacity and available charging sources, you can build a system that suits your needs instead of spending money on equipment you don't really need.

At Oz Off Grid, we'll keep breaking down caravan and 12V systems into practical information that makes sense before you start buying equipment.

If you're building or upgrading a caravan's 12V system, the battery is one of the most important decisions you'll make.

Your battery stores the energy produced by your charging sources, such as solar or a DC-DC charger, and makes that energy available when you need it.

Two battery types you'll commonly come across are AGM and lithium.

Both can work well, but they have quite different characteristics.

AGM batteries

AGM, or Absorbent Glass Mat, batteries are a type of sealed lead-acid battery.

They have been used in caravans, boats, 4WDs and other 12V applications for many years.

They're relatively straightforward and can be a good choice for a simple or budget-conscious setup.

The downside is weight.

AGM batteries are considerably heavier than lithium batteries for a similar amount of stored energy.

You also generally don't want to regularly use all of an AGM battery's rated capacity. Doing so can reduce its lifespan.

Lithium batteries

Lithium batteries, particularly lithium iron phosphate or LiFePO4, have become increasingly popular in modern caravan and off-grid systems.

Their biggest advantages are their lighter weight and the amount of usable energy they can provide.

A lithium battery can often deliver a greater proportion of its rated capacity without the same concerns associated with deeply discharging a lead-acid battery.

They also tend to maintain a more consistent voltage as they discharge.

However, lithium batteries cost more upfront and the charging system needs to be suitable for lithium chemistry.

So which one is better?

There's no universal winner.

If you're building a simple system and keeping costs down, AGM may still make sense.

If weight, usable capacity and long-term performance are important, lithium can be an attractive option.

The right choice depends on your budget, available space, existing equipment and how you use your caravan.

Don't forget the charging system

One mistake people can make when upgrading from AGM to lithium is thinking the battery is the only thing that needs changing.

Your solar charger, DC-DC charger and other charging equipment need to be compatible with the battery you're installing.

Some equipment can be configured for different battery types, while other systems may need replacing.

It's worth checking the specifications before buying anything.

How much battery do you actually need?

Battery size is usually measured in amp-hours (Ah).

For example, a 100Ah battery doesn't necessarily mean you'll have 100Ah of usable energy available for your appliances.

The chemistry, battery management system, recommended depth of discharge and operating conditions all matter.

This is why comparing batteries purely by their Ah rating can be misleading.

Think about your whole system

Your battery is only one part of an off-grid electrical system.

You need to consider:

How much power you use each day

How much battery capacity you need

How much solar you have

Whether you have a DC-DC charger

How your batteries are protected

What charging equipment is installed

How you'll monitor your battery

A good system is about making all those parts work together.

Before you upgrade

Before spending money on a new battery, work out what you're trying to achieve.

Do you need more capacity?

Are your existing batteries too heavy?

Are you running out of power overnight?

Are you adding more solar?

Are you changing your charging system?

Knowing the problem you're trying to solve makes it much easier to choose the right battery.

At Oz Off Grid, we'll keep looking at the practical side of 12V systems so you can understand what you're buying and why you need it before handing over your hard-earned money.

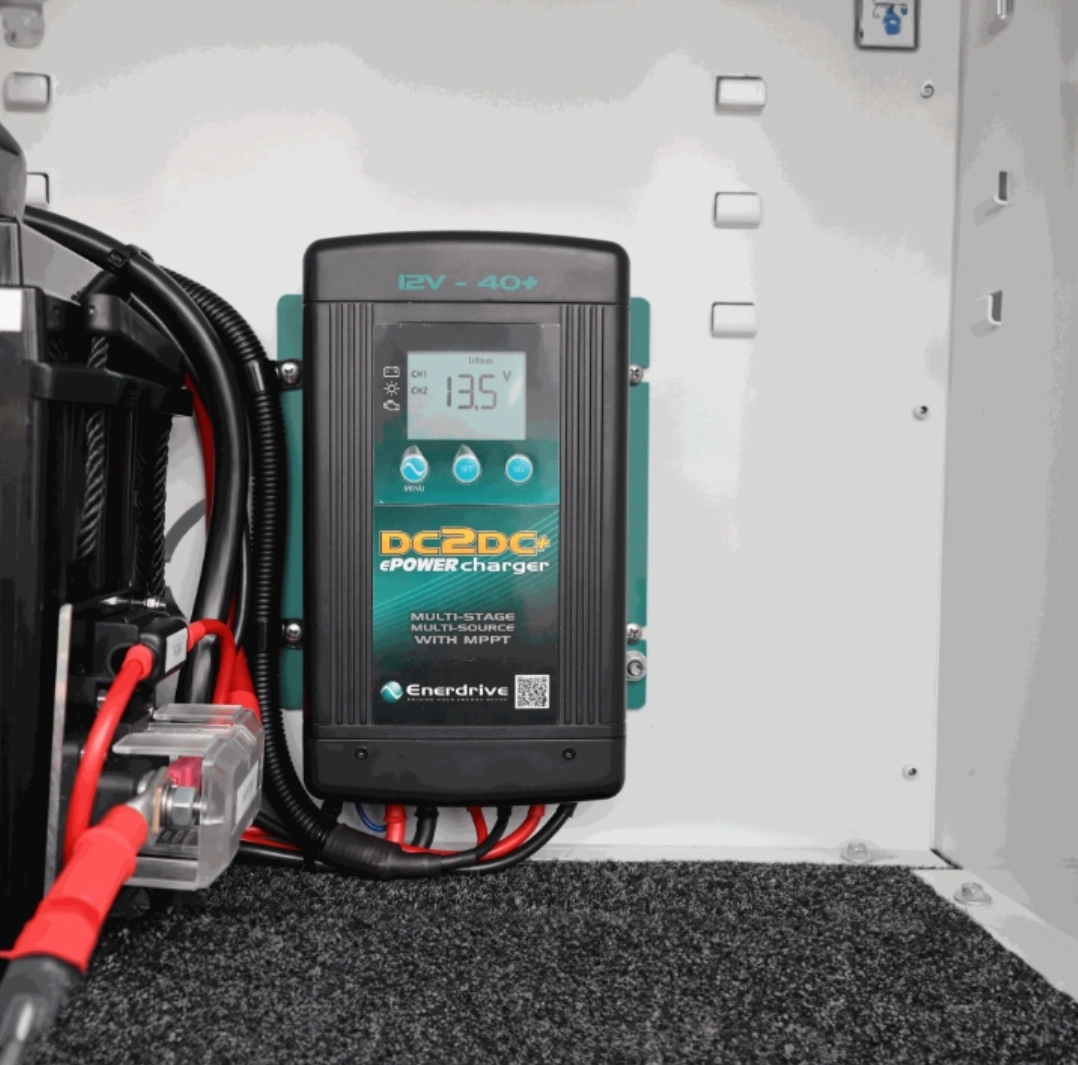

If you've started looking into caravan 12V systems, you've probably come across the term DC-DC charger.

It sounds more complicated than it really is.

In simple terms, a DC-DC charger takes electrical power from your vehicle and uses it to properly charge an auxiliary battery.

That can be particularly useful when you're travelling and want to recharge your caravan batteries while you're on the road.

Why can't you just connect the battery to the vehicle?

Older vehicles with traditional alternators could sometimes charge an auxiliary battery using a relatively simple setup.

Modern vehicles can be different.

Many use smart alternators that change their charging voltage depending on what the vehicle needs. This can make directly charging an auxiliary battery less effective.

A DC-DC charger is designed to provide the appropriate charging profile for the battery it's connected to.

What does it actually do?

Think of a DC-DC charger as a middleman between your vehicle and your auxiliary battery.

Power comes from the vehicle's electrical system.

The charger manages that incoming power and delivers an appropriate charging voltage and current to the auxiliary battery.

Depending on the charger and installation, it may also provide different charging profiles for different battery types.

Why is this useful for caravans?

Imagine you've spent several days camping.

Your fridge has been running, you've charged phones and other devices, you've used lights at night and the weather hasn't provided much solar.

Your batteries are getting low.

You hook up the caravan and start driving to your next destination.

A DC-DC charger can use that driving time to put energy back into your auxiliary battery.

By the time you arrive at your next campsite, you may have significantly more usable energy available.

Can solar and a DC-DC charger work together?

Yes.

In many off-grid setups, solar and vehicle charging complement each other.

Solar can recharge your batteries while you're stationary during daylight hours, while a DC-DC charger can provide another charging source while you're travelling.

This gives you more than one way to replenish the energy you've used.

Having multiple charging sources can be particularly useful when you're travelling through areas where weather or shade makes solar less reliable.

Do you actually need one?

Not necessarily.

If your caravan has a small electrical system and you're always staying at powered sites, you may have little need for one.

But if you're regularly camping away from mains power and want to recharge your auxiliary battery while driving, a DC-DC charger can be extremely useful.

Your existing electrical system also matters.

Some caravans already have suitable charging equipment, while others may need additional equipment or modifications.

Choosing a DC-DC charger

Don't simply choose one because it has the biggest number on the box.

You need to consider:

Battery type

Battery capacity

Charging requirements

Vehicle electrical system

Cable size and installation

Fuse and circuit protection

Solar input, if supported

Available charging current

The charger needs to be suitable for the entire system.

Installation matters

A DC-DC charger is part of a high-current electrical system, so installation shouldn't be treated like plugging in a phone charger.

Correct cable sizing, fusing, connections and routing are important.

If you're not confident working with automotive electrical systems, getting the installation checked or professionally installed can be a sensible choice.

The bigger picture

A DC-DC charger isn't a magic solution that creates free electricity.

It simply gives your electrical system another way to put energy back into the battery.

When combined with solar and sensible power management, it can make an off-grid caravan setup considerably more flexible.

Before buying one, understand your existing system first.

What battery do you have?

How much power are you using?

How much solar do you have?

What vehicle are you charging from?

And how much energy do you actually need to replace while travelling?

Once you know those things, choosing the right equipment becomes much easier.

At Oz Off Grid, we're interested in understanding how these systems actually work, so you can make better decisions before spending money on your setup.

One of the best things about remote camping is being able to get away from powered campsites and enjoy a bit more independence.

But once you're away from mains power, your 12V system becomes much more important.

You don't necessarily need an enormous electrical setup. The key is having the right equipment for the way you actually camp.

Here are some of the 12V essentials worth considering.

1. A suitable battery

Your battery is the storage tank for your electrical system.

It stores energy from your solar panels, vehicle charging system or other charging sources so you can use it when you need it.

Battery size and type should be based on your actual power requirements rather than simply buying the biggest battery you can afford.

2. Solar panels

Solar is one of the easiest ways to replace energy while you're camping.

Panels can be mounted permanently on a caravan or vehicle, or portable panels can be useful when you want to position them in a sunny location while keeping your campsite shaded.

The amount of solar you need depends on your battery capacity, daily power consumption and camping conditions.

3. A solar charge controller

Solar panels shouldn't simply be connected directly to a battery.

A solar charge controller manages the electricity coming from the panels and controls how the battery is charged.

There are different types of controllers, with MPPT controllers generally being more sophisticated and efficient than basic PWM controllers.

4. Battery monitoring

A battery monitor can tell you much more than simply whether your battery is "full" or "empty."

Depending on the system, you may be able to monitor voltage, current, energy consumption and an estimate of remaining capacity.

Being able to see what's happening with your battery makes managing your power much easier.

5. DC-DC charger

If you're travelling between campsites, a DC-DC charger can provide another way to recharge your auxiliary battery while driving.

It can be particularly useful when solar conditions aren't ideal or when you've used more energy than your panels can replace.

We've covered DC-DC chargers in more detail in our guide:

What Is a DC-DC Charger and Do You Need One?

6. Fuses and circuit protection

This is one area where it's worth taking things seriously.

Fuses and appropriate circuit protection help protect wiring and equipment if something goes wrong.

Every 12V system should be designed with appropriate protection for the equipment and wiring being used.

A fuse isn't there to make the system work better. It's there to help prevent a fault from turning into a much bigger problem.

7. Quality cables and connections

A 12V system can carry surprisingly high currents.

Cable size, cable length, terminals and connections all matter.

Using unsuitable cable or poor connections can result in voltage drop, heat and unreliable equipment.

Don't assume that because something is labelled "12V" it can be connected with any convenient piece of wire.

8. Anderson-style connectors

Anderson connectors are commonly used in caravans, 4WDs and other 12V applications where a reliable, removable high-current connection is required.

They're particularly useful for things such as portable solar panels, battery connections and vehicle-to-caravan charging systems, depending on the application.

9. USB and 12V outlets

Not everything needs an inverter.

Phones, tablets, cameras and many other devices can be charged directly from USB or 12V outlets.

Running equipment directly from your 12V system can be more efficient than converting 12V DC into 240V AC and then using another charger.

10. A way to understand your power usage

This might be the most important item of all.

You don't need to become an electrical engineer, but you should have a basic understanding of how much power you're using.

If your battery keeps going flat, adding more equipment isn't necessarily the answer.

Sometimes the solution is simply finding out where the power is going.

Keep it practical

A good remote camping setup doesn't need to be complicated.

Start with the equipment you actually need, understand how each part works and make sure the components are compatible.

As your camping style changes, you can upgrade the system.

The goal isn't to have the biggest 12V setup at the campsite.

The goal is to have enough reliable power to enjoy being there.

At Oz Off Grid, we'll keep looking at practical 12V equipment, caravan power and off-grid setups so you can understand what you're buying and how the pieces fit together.

One of the first things people discover when they start camping away from powered sites is that 12V electricity works very differently from the power available at home.

The good news is that you can run a surprising amount of everyday equipment from a properly designed 12V system.

The important part is understanding how much energy your equipment actually uses and how long your battery can supply it.

Lights

LED lighting is one of the easiest things to run from a 12V system.

Modern LED lights generally use relatively little power, which means you can have lighting throughout your caravan without placing a huge demand on your battery.

This is one of the reasons LED lighting is so useful for off-grid camping.

12V fridges

A 12V compressor fridge can be an excellent option for off-grid camping.

Unlike a simple light that draws power only while it's switched on, a fridge cycles on and off throughout the day.

Its actual energy consumption depends on things such as the fridge size, temperature settings, ambient temperature, ventilation and how often the door is opened.

This makes the fridge one of the appliances worth paying particular attention to when working out your daily power requirements.

Water pumps

Caravan water pumps are another common 12V appliance.

The pump only operates when water is being used, so its total energy consumption can be relatively modest.

Having reliable 12V power means you can use your caravan's water system even when you're nowhere near mains electricity.

USB charging

Phones, tablets, cameras and other small electronic devices can often be charged directly from USB outlets.

This can be more efficient than using an inverter to produce 240V AC and then plugging a USB charger into it.

If most of your electrical needs are small devices, direct 12V or USB charging can help reduce unnecessary energy losses.

Fans

12V fans can be very useful when camping in warm weather.

They're generally much easier on a battery than larger 240V appliances, although their energy consumption will still depend on the particular fan and how long you run it.

For remote camping, a low-power fan can provide a lot of comfort for relatively little energy.

Televisions and entertainment

Many caravan televisions are designed to operate from 12V.

Whether they're a sensible choice for your setup depends on how much you use them and how much battery capacity you have available.

Watching television for several hours every night can add up over a number of days.

What about a microwave or air conditioner?

This is where things start getting more complicated.

Large appliances such as microwaves, air conditioners, kettles and other high-powered equipment generally require considerably more electricity than basic 12V appliances.

Some can be operated from a 12V battery system using an inverter, but doing so can place a significant demand on the batteries.

The inverter itself also consumes energy while converting battery power into 240V AC.

This doesn't mean these appliances are impossible to run off-grid. It means the electrical system needs to be designed around them.

Why battery capacity matters

Imagine you have a 12V fridge, lights, water pump, phones and a fan.

Each individual item might seem manageable.

But they're all using energy throughout the day.

Your total daily energy consumption is what matters.

This is why simply asking whether a particular appliance is "12V" doesn't tell you whether your battery system can actually support it.

Watts, amps and amp-hours

You'll often see electrical equipment described using watts or amps, while batteries are commonly described using amp-hours.

These measurements describe different things.

Watts tell you about power.

Amps tell you about electrical current.

Amp-hours describe battery capacity.

Understanding the relationship between these measurements makes it much easier to estimate how long your equipment can operate.

For example, a high-powered appliance can drain a battery much faster than a low-powered LED light.

The inverter question

An inverter converts the battery's DC electricity into AC electricity so you can operate suitable 240V appliances.

That can be extremely useful, but it isn't free.

There are losses during the conversion, and high-powered appliances can require substantial battery capacity.

If an appliance is available in a suitable 12V version, running it directly from your 12V system may be more efficient.

Think about your camping style

There's no single "perfect" caravan electrical system.

If you mainly need lights, a fridge, water pump and device charging, your requirements may be quite modest.

If you want to run high-powered appliances for extended periods without mains power, your battery, solar, charging equipment and inverter requirements can become considerably larger.

The best system is the one designed around how you actually camp.

Before buying another battery or another solar panel, work out what is using your power first.

You might discover that a small change in how you use your equipment makes a bigger difference than an expensive upgrade.

At Oz Off Grid, we'll keep breaking down the practical side of caravan power so you can understand what your system can actually do before spending money on upgrades.

If you've spent any time around caravans, 4WDs or 12V electrical systems, you've probably seen Anderson-style connectors.

They're commonly used wherever you need a reliable, removable connection for higher-current 12V equipment.

They might look simple, but choosing the right connector, cable and protection is important when you're dealing with electrical current.

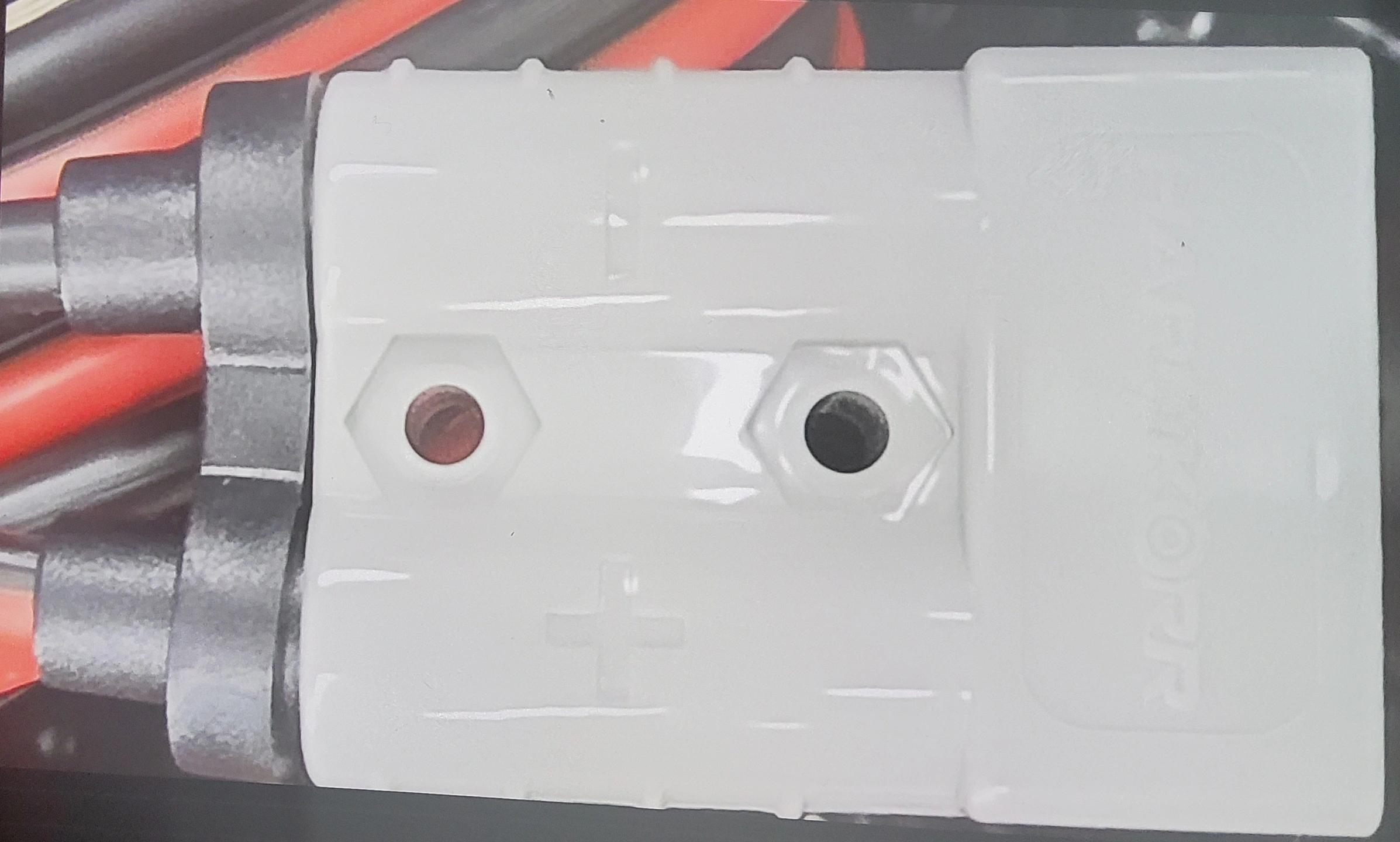

What is an Anderson connector?

Anderson connectors are a family of electrical connectors designed to make and break electrical connections safely and reliably.

They're commonly recognised by their distinctive coloured plastic housings, although the colour itself isn't what determines whether a connector is suitable for a particular job.

Different Anderson-style connectors are designed to handle different current levels and cable sizes.

Where are they used?

You'll commonly find them in applications such as:

Vehicle-to-caravan connections

Portable solar panels

Battery connections

DC-DC charging systems

12V accessories

Portable power equipment

Winches and other higher-current equipment

The exact connector required depends on the application and electrical load.

Why are they useful?

One of the biggest advantages is convenience.

Instead of permanently connecting equipment, you can disconnect it when necessary.

For example, a portable solar panel can be connected to a caravan's electrical system when you're camping and disconnected when you're packing up.

They're also useful for vehicle and caravan connections because the connection can be made and disconnected without tools.

Don't judge a connector by colour alone

You'll often hear people referring to Anderson connectors by their colour.

However, the colour isn't a universal indication of the current rating across every connector on the market.

It's important to check the actual connector specifications before assuming what a particular connector can safely handle.

The terminals, housing and cable all need to be appropriate for the electrical load.

Cable size matters too

A large connector doesn't automatically make an electrical installation safe.

The cable connecting it needs to be correctly sized for the current, distance and application.

Undersized cable can cause voltage drop and heat, particularly when equipment is drawing significant current.

This is why the connector and cable should be considered as part of the same electrical system.

What about fuses?

Appropriate circuit protection is another important part of a 12V installation.

A fuse or circuit breaker can help protect wiring if a fault occurs.

The protection needs to be appropriate for the cable and circuit rather than simply being chosen because it matches the appliance.

A connector may be capable of carrying a large current, but that doesn't mean the entire circuit is automatically safe at that current.

Connecting portable solar

Portable solar panels are one situation where Anderson-style connectors can be particularly convenient.

You can position the panels where they receive better sunlight while keeping your vehicle or caravan in a more suitable location.

When you're ready to leave, simply disconnect the panels and pack them away.

The actual wiring and charging arrangement still needs to be designed correctly, including suitable solar regulation and protection.

Vehicle-to-caravan connections

Anderson-style connectors can also be used to connect a vehicle's charging system to a caravan or auxiliary battery system.

Depending on the setup, this may form part of a DC-DC charging system.

This can allow your vehicle to provide charging power to an auxiliary battery while travelling.

Keep connections clean and secure

Outdoor electrical connections have to deal with dust, moisture, vibration and temperature changes.

A loose, damaged or contaminated connection can create resistance and heat.

Regularly checking connections and keeping equipment in good condition is particularly important when travelling remotely.

The simple takeaway

Anderson connectors are popular because they're practical.

They're easy to connect and disconnect, they're available in different sizes and they're well suited to many 12V applications.

But they're only one part of the electrical system.

Correct cable sizing, suitable connectors, proper circuit protection and a sensible installation all matter.

If you're building or modifying a 12V system, understand what current the circuit will carry and make sure every part of the circuit is rated appropriately.

At Oz Off Grid, we'll keep explaining the little components that make up a reliable off-grid system, because understanding the basics can save you plenty of headaches later.

Getting away from busy caravan parks and powered campsites is one of the best parts of travelling.

But camping remotely also means you need to be more prepared.

When you're a long way from the nearest shop, service station or powered campsite, forgetting something important can turn a relaxing trip into an expensive or uncomfortable problem.

You don't need to pack everything you own, but a little planning goes a long way.

Power and charging

Before heading remote, think about how you're going to keep your essential equipment running.

Depending on your setup, this could include:

Battery capacity

Solar panels

DC-DC charging

Charging cables

USB chargers

Portable power equipment

Battery monitoring

It's worth checking your batteries and charging systems before leaving rather than discovering a problem on your first night away.

Water

Water planning becomes more important the further you travel from reliable supplies.

Consider:

How much drinking water you need

Water for washing and cooking

Your caravan or vehicle water capacity

Backup containers

Water filtration or purification options

Always allow more water than you think you'll need when travelling through remote areas.

Food and cooking

Plan meals around the storage space and equipment you actually have.

Think about:

Non-perishable food

Refrigerated food

Cooking equipment

Gas or other fuel supplies

A backup method for preparing food

It doesn't need to be complicated, but running out of coffee on day two can seriously affect campsite morale. ☕😂

First aid and emergency equipment

A properly stocked first aid kit is worth having whenever you're travelling.

The kit should suit the type of trip you're taking and the number of people travelling.

Depending on where you're going, consider:

First aid supplies

Emergency contact information

Emergency communication options

A torch or headlamp

Spare batteries

Emergency blankets

Basic tools

For more remote travel, additional communication and emergency equipment may be worth considering.

Vehicle and recovery equipment

If you're travelling off sealed roads or into remote areas, make sure your vehicle is prepared for the conditions.

Useful equipment may include:

A spare tyre

Tyre repair equipment

Air compressor

Recovery equipment suitable for your vehicle

Basic tools

Fluids and spare parts where appropriate

It's equally important to know how to safely use the equipment you're carrying.

Navigation and communication

Don't assume your mobile phone will work everywhere.

Depending on where you're travelling, consider carrying:

Offline maps

A dedicated navigation device

Paper maps

A satellite communication device or emergency beacon where appropriate

Tell someone where you're going and when you expect to return, particularly if you're heading into genuinely remote areas.

Lighting

Good lighting makes a campsite safer and more comfortable.

Consider:

Headlamps

Torches

Lanterns

Caravan or vehicle lighting

Spare batteries or charging options

A headlamp is particularly useful because it leaves both hands free when you're setting up camp or dealing with something after dark.

Shelter and clothing

Weather can change quickly.

Even if the forecast looks good, it's worth being prepared for:

Cold nights

Rain

Wind

Hot conditions

Sun exposure

Your shelter and clothing should suit the environment you're travelling through rather than simply the weather you expect.

Don't forget the boring stuff

Some of the most useful things to pack aren't exciting:

Rubbish bags

Toilet paper

Wet wipes

Insect repellent

Sunscreen

Basic cleaning supplies

Spare fuel where appropriate

These little things can make a big difference when you're camping somewhere without shops nearby.

Plan for problems

Nobody heads away expecting something to go wrong.

But tyres puncture, batteries go flat, vehicles break down and weather changes.

Being prepared doesn't mean assuming the worst.

It simply means having enough equipment, knowledge and planning to deal with common problems without panicking.

The goal is freedom, not discomfort

Off-grid camping should give you more freedom, not create unnecessary stress.

The right preparation lets you spend more time enjoying where you are and less time worrying about what you've forgotten.

Before you head off, take a few minutes to check the basics:

Power.

Water.

Food.

Safety.

Communication.

Vehicle.

Get those things right, and you're well on your way to a much better trip.

At Oz Off Grid, we'll keep building practical guides for people who want to travel further, camp smarter and become a little more self-reliant along the way.

A 12V electrical system can seem complicated when you first start looking at batteries, solar panels, chargers, inverters and wiring.

The good news is that most off-grid systems are built from a few basic components working together.

Before buying anything, it helps to understand what each part does and how the whole system fits together.

Start with what you need to power

The first question isn't:

"What battery should I buy?"

It's:

"What do I actually want to run?"

Make a list of the equipment you plan to use.

For example:

Lights

A fridge

Water pump

Phone and tablet charging

Fans

Television

Other 12V appliances

Once you know what you want to run, you can start estimating how much energy you'll need each day.

This becomes the foundation for the rest of your system.

The battery stores your energy

The battery is the storage part of the system.

It holds the electrical energy you collect from charging sources and supplies that energy when you need it.

Battery capacity is commonly measured in amp-hours, but usable capacity depends on the type of battery and how deeply it can safely be discharged.

For example, lithium and AGM batteries can behave quite differently even when they have the same amp-hour rating.

The battery should be chosen to suit your expected energy use rather than simply picking the biggest one available.

Solar puts energy back into the battery

Solar panels generate electricity from sunlight.

That electricity passes through a suitable solar charge controller before charging the battery.

The amount of solar you need depends on:

Daily energy use

Battery capacity

Available roof or ground space

Weather and sunlight conditions

How long you plan to stay in one place

Portable panels can be useful when your vehicle or caravan is parked in the shade but you can position the panels somewhere sunny.

Charging while driving

A DC-DC charger can provide another way to recharge an auxiliary battery.

When you're travelling, it uses power from the vehicle's electrical system and delivers an appropriate charging profile to the auxiliary battery.

This can work alongside solar.

Solar helps while you're parked.

Vehicle charging helps while you're moving.

Having both can give you more flexibility when travelling.

Don't forget circuit protection

Fuses and circuit breakers are an important part of any 12V system.

They help protect wiring and equipment if a fault occurs.

The protection used needs to be suitable for the circuit and wiring.

Simply installing the biggest fuse available is not the answer.

Correct circuit protection is an important part of keeping an electrical system safe and reliable.

Wiring matters

A 12V system can carry high currents, particularly when you're running equipment through long cables.

Cable size needs to be suitable for the current being carried and the distance involved.

Undersized cable can cause voltage drop and heat.

Good connections and correctly installed terminals are also important.

A high-quality battery and solar system won't perform properly if the wiring between everything is unsuitable.

Monitoring your system

A battery monitor can help you understand what is happening with your electrical system.

Depending on the equipment, it can show information such as:

Battery voltage

Current entering or leaving the battery

Energy consumption

Estimated battery capacity

Monitoring your system can help you identify problems before you end up with a flat battery in the middle of nowhere.

Keep the first system simple

You don't need to build the ultimate off-grid electrical system immediately.

A simple system might consist of:

Battery → Fuses → 12V appliances

Then you can add:

Solar → Charge Controller → Battery

And:

Vehicle → DC-DC Charger → Battery

The exact design will depend on your equipment and requirements, but understanding these basic relationships makes the system much easier to plan.

Plan before you buy

One of the easiest mistakes is buying equipment first and trying to make it all work together afterwards.

Start by working out:

What equipment am I running?

How much power does it use?

How long will I run it?

How much battery capacity do I need?

How will I recharge the battery?

Once you have those answers, choosing equipment becomes much easier.

Get help when you need it

Working on 12V systems involves electrical currents that can cause serious problems if wiring, batteries or equipment are incorrectly installed.

If you're unsure about cable sizing, circuit protection, battery installation or electrical modifications, it's sensible to get advice from a qualified auto electrician or suitably qualified installer.

There's nothing wrong with learning how your system works while getting professional help with the parts you're not confident doing yourself.

Start small and learn

The best way to understand a 12V system is often to start with something simple.

Learn how the battery works.

Watch how much energy you're using.

Understand how the battery is being charged.

Then build your knowledge from there.

Before long, all those cables, chargers and electrical boxes start making a lot more sense.

At Oz Off Grid, our goal is to make off-grid power and practical camping setups easier to understand, one piece at a time.

When you're travelling with a caravan or heading off the beaten track in a 4WD, being prepared for small problems can make a big difference.

A flat tyre, dead battery, unexpected weather or a minor injury can be inconvenient close to town.

When you're a long way from help, those same problems can become much more serious.

You don't need to carry every gadget available, but having sensible emergency equipment and knowing how to use it is an important part of travelling safely.

First aid kit

A properly stocked first aid kit should be one of the first things packed.

Consider the type of trip you're taking, how remote you'll be and how many people are travelling.

Check your kit regularly and replace items that have been used, damaged or are past their expiry date.

Depending on your needs, your kit may include items for:

Cuts and wounds

Burns

Sprains and minor injuries

Basic emergency treatment

Personal medications

Knowing how to use your first aid equipment is just as important as carrying it.

Reliable communication

Mobile phone coverage can disappear surprisingly quickly once you leave populated areas.

Before travelling remotely, consider how you would contact someone if your phone had no signal.

Depending on where you're travelling, options may include:

A satellite communication device

An emergency beacon or personal locator beacon

UHF radio

Offline maps and navigation

Tell someone where you're going and when you expect to return, particularly if you're travelling into remote areas.

Lighting

A breakdown or emergency rarely waits for daylight.

Carry reliable lighting such as:

Torches

Headlamps

Lanterns

Spare batteries

Charging options

A headlamp can be particularly useful because it leaves both hands free while working on a vehicle or setting up camp in the dark.

Vehicle recovery equipment

If you're travelling on rough tracks or off-road, appropriate recovery equipment can be useful.

Depending on your vehicle and the conditions, this may include:

Recovery straps or ropes

Rated recovery points

Shackles or suitable soft shackles

Traction boards

A shovel

Gloves

Recovery equipment needs to be suitable for the vehicle and used correctly.

Incorrect recovery techniques can cause serious injury or damage.

If you're new to four-wheel driving, consider proper training before attempting vehicle recoveries.

Tyre equipment

Tyres are one of the most common problems when travelling.

Useful equipment may include:

A properly inflated spare tyre

Tyre repair equipment

An air compressor

Tyre pressure gauge

Wheel-changing tools

Check that your spare tyre is actually in usable condition before leaving.

A flat or damaged spare isn't much help when you're sitting on the side of a remote road.

Basic tools and supplies

You don't need to carry a complete workshop, but a basic selection of tools can help deal with small problems.

Consider:

Basic hand tools

Electrical tape

Cable ties

Spare fuses

Work gloves

Torch

Fluids suitable for your vehicle where appropriate

Sometimes a simple temporary repair is enough to get you safely to the next town or service centre.

Battery and power backup

Your electrical system is another area worth checking before heading away.

Consider:

Vehicle battery condition

Caravan battery condition

Charging equipment

Solar equipment

Jumper leads or an appropriate jump-start solution

Spare charging cables

Knowing that your batteries are healthy before leaving can save plenty of frustration later.

Water and food

Remote travel requires more planning than a quick weekend at a caravan park.

Carry enough water and food for your planned trip, plus some extra in case you're delayed.

Consider:

Drinking water

Backup water containers

Non-perishable food

A way to prepare food

Extra supplies for unexpected delays

Water is particularly important when travelling through hot or remote areas.

Navigation

Don't rely entirely on a single device.

Consider having more than one way to navigate, such as:

Offline maps

GPS navigation

Paper maps

A phone with downloaded maps

Make sure you know your planned route and understand the conditions you may encounter.

Fire safety

If you're carrying cooking equipment or camping in areas where fires are permitted, think about fire safety.

Carry appropriate equipment and always follow local fire restrictions and total fire bans.

Conditions can change quickly, particularly during hot and dry periods.

Check before you leave

Before heading away, take a few minutes to check the basics.

✔ Vehicle

✔ Tyres

✔ Batteries

✔ Water

✔ Food

✔ First aid

✔ Communication

✔ Navigation

✔ Emergency equipment

A quick check before leaving is much easier than trying to solve a problem after you're already stuck somewhere remote.

Be prepared, not overloaded

The goal isn't to turn your caravan or 4WD into a travelling hardware store. 😄

It's about carrying the equipment that makes sense for the places you're going and knowing how to use it.

Remote travel can be incredibly rewarding.

A little preparation helps keep small problems small and lets you focus on the important part:

Enjoying the adventure.

At Oz Off Grid, we'll keep building practical guides around off-grid power, caravan travel, remote camping and the gear that helps make it all possible.
